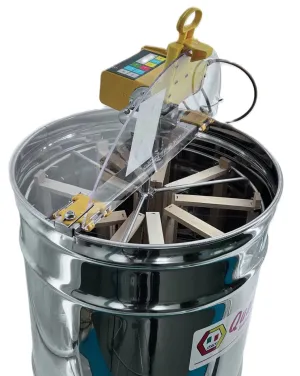

Stainless steel RADIAL HONEY EXTRACTOR

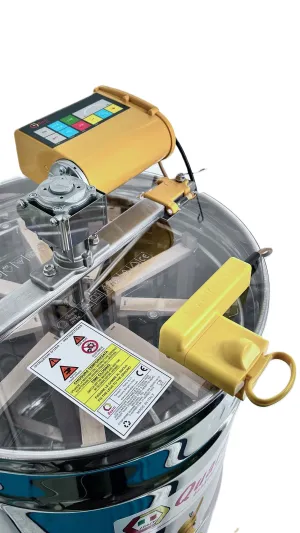

500 series motor with lid lock (Code QI S134C80)
for 9 Dadant Blatt super frames
with stainless steel basket
polycarbonate lids (Code QI C18)
TIG-welded bottom
tap (Code QI R11)
without legs - tabletop - Ø 470
OPTIONAL:
Ø 480 stand for 200 kg honey extractors or ripeners (Code QI S40)
No. 3 additional cages not included are required for nest combs (INOX QI G06 series)
Programming from diaphragm control panel In manual with start/stop, speed increase/decrease, direction reversal In automatic with self-learning of previously made settings Illuminated displays of line, start/stop, reversal, programming, memories used, and speed Automatic shutdown after 30 minutes Quick motor mount to Extractor Die-cast aluminum motor mount Volt 230 50/60Hz Watt 150 speed 450 Rpm IP 20 protection rating Weight approx. 3.1 Kg
