General CharacteristicsInox volumetric rotary pump with flexible impeller, self-priming ( up to 6 mt.), reversible, low-speed, available in one-piece (coaxial) version, with 1- and 2-speed pulley reduction, with mechanical speed variator, with built-in inverter.The trolley/base, fittings and pump body are made of AISI 304 stainless steel.The "standard" impeller is made of non-toxic natural rubber, or on request in neoprene,nitrile, EPDM, silicone. The standard mechanical seal is ceramic-graphite-NBR, upon request vidia-vidia-NBR or vidia-vidia-viton. Food industry: transfer of delicate liquids, including those with suspended bodies, and of different viscosities without emulsifying : wine, must, must and destemmed grapes, beer, fruit juice and pulp, honey, jam, liquid sugar, glucose, milk, butter, yoghurt, eggs, oil, tomato sauce.

General CharacteristicsInox volumetric rotary pump with flexible impeller, self-priming ( up to 6 mt.), reversible, low-speed, available in one-piece (coaxial) version, with 1- and 2-speed pulley reduction, with mechanical speed variator, with built-in inverter.The trolley/base, fittings and pump body are made of AISI 304 stainless steel.The "standard" impeller is made of non-toxic natural rubber, or on request in neoprene,nitrile, EPDM, silicone. The standard mechanical seal is ceramic-graphite-NBR, upon request vidia-vidia-NBR or vidia-vidia-viton. Food industry: transfer of delicate liquids, including those with suspended bodies, and of different viscosities without emulsifying : wine, must, must and destemmed grapes, beer, fruit juice and pulp, honey, jam, liquid sugar, glucose, milk, butter, yoghurt, eggs, oil, tomato sauce.

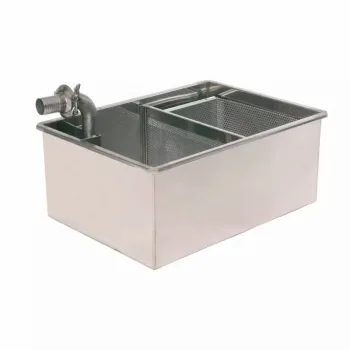

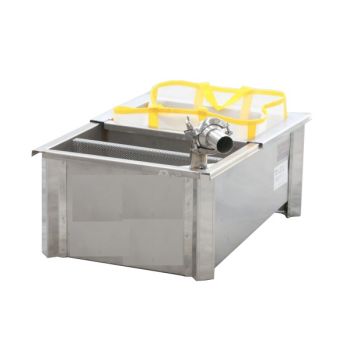

Movable bulkhead with stainless steel filter Attachment for "garolla" pump Ø 50 mm complete with : gasket -gasket-hose holder Sump for honey suction at the bottom Swivel holder Stainless steel filter for operculums Completely made of stainless steel, tig welded Optional (not included PREFILTER for OPERULES (QI F57)

Movable bulkhead with stainless steel filter Attachment for "garolla" pump Ø 50 mm complete with : gasket -gasket-hose holder Sump for honey suction at the bottom Swivel holder Stainless steel filter for operculums Completely made of stainless steel, tig welded Optional (not included PREFILTER for OPERULES (QI F57)

-

-

-

-

General CharacteristicsInox volumetric rotary pump with flexible impeller, self-priming ( up to 6 mt.), reversible, low-speed, available in one-piece (coaxial) version, with 1- and 2-speed pulley reduction, with mechanical speed variator, with built-in inverter.The trolley/base, fittings and pump body are made of AISI 304 stainless steel.The "standard" impeller is made of non-toxic natural rubber, or on request in neoprene,nitrile, EPDM, silicone. The standard mechanical seal is ceramic-graphite-NBR, upon request vidia-vidia-NBR or vidia-vidia-viton. Food industry: transfer of delicate liquids, including those with suspended bodies, and of different viscosities without emulsifying : wine, must, must and destemmed grapes, beer, fruit juice and pulp, honey, jam, liquid sugar, glucose, milk, butter, yoghurt, eggs, oil, tomato sauce.

General CharacteristicsInox volumetric rotary pump with flexible impeller, self-priming ( up to 6 mt.), reversible, low-speed, available in one-piece (coaxial) version, with 1- and 2-speed pulley reduction, with mechanical speed variator, with built-in inverter.The trolley/base, fittings and pump body are made of AISI 304 stainless steel.The "standard" impeller is made of non-toxic natural rubber, or on request in neoprene,nitrile, EPDM, silicone. The standard mechanical seal is ceramic-graphite-NBR, upon request vidia-vidia-NBR or vidia-vidia-viton. Food industry: transfer of delicate liquids, including those with suspended bodies, and of different viscosities without emulsifying : wine, must, must and destemmed grapes, beer, fruit juice and pulp, honey, jam, liquid sugar, glucose, milk, butter, yoghurt, eggs, oil, tomato sauce.

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

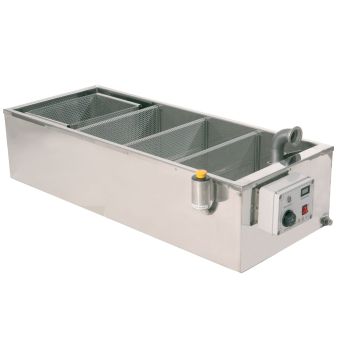

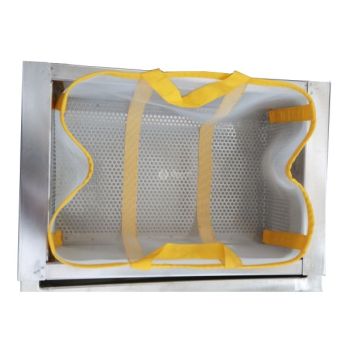

Prefilter for honey made of perforated stainless steel sheet , with handles for lifting Movable bulkheads with stainless steel filter with variable diameter Water level/water drain Connection for "garolla" pump diameter 50 mm complete with: gasket-grid- hose holder Sump for honey suction at the bottom Control panel with : on/off- thermostat- LCD thermometer Completely made of stainless steel, TIG welded Stainless steel heating element 1550 W

Prefilter for honey made of perforated stainless steel sheet , with handles for lifting Movable bulkheads with stainless steel filter with variable diameter Water level/water drain Connection for "garolla" pump diameter 50 mm complete with: gasket-grid- hose holder Sump for honey suction at the bottom Control panel with : on/off- thermostat- LCD thermometer Completely made of stainless steel, TIG welded Stainless steel heating element 1550 W

FITTING Ø50 with 2" threaded socket

FITTING Ø50 with 2" threaded socket

-

-

Low-speed honey pump , complete with two 50 mm diameter stainless steel fittings for connection with reinforced plastic hoses Technical data : Flow rate with head 6 m kg/min 25 Impeller rotation speed n /min. 195 Single-phase electric motor W 750 Floor space mm 800x400 Overall height mm 800 Weight body only kg 8 Weight with single-phase motor kg 34 Hose connector for inlet and outlet pipes mm 50

Low-speed honey pump , complete with two 50 mm diameter stainless steel fittings for connection with reinforced plastic hoses Technical data : Flow rate with head 6 m kg/min 25 Impeller rotation speed n /min. 195 Single-phase electric motor W 750 Floor space mm 800x400 Overall height mm 800 Weight body only kg 8 Weight with single-phase motor kg 34 Hose connector for inlet and outlet pipes mm 50

-

-

Low RPM honey pump , complete with two 50 mm diameter stainless steel fittings for connection with plastic reinforced hoses Technical data : Flow rate with head 6 m kg/min 25 Impeller rotation speed n /min. 195 Three-phase electric motor 400V/750W Floor space mm 800x400 Overall height mm 800 Weight body only kg 8 Weight with single-phase motor kg 34 Hose holder for loading and unloading pipes mm 50

Low RPM honey pump , complete with two 50 mm diameter stainless steel fittings for connection with plastic reinforced hoses Technical data : Flow rate with head 6 m kg/min 25 Impeller rotation speed n /min. 195 Three-phase electric motor 400V/750W Floor space mm 800x400 Overall height mm 800 Weight body only kg 8 Weight with single-phase motor kg 34 Hose holder for loading and unloading pipes mm 50

-

-

-

-

-

-

Inverter with single-phase inputPump body made of 316L stainless steelFood grade plastic materialRotor made of food grade plastic materialTransported volume per revolution 0.1 litersMaximum pressure 15 barMinimum speed 60 rpmMaximum speed 330 rpmVolume conveyed at maximum speed 1800 liters/hourMechanical widia-widia sealsCoupling nozzles diameter 50 mmTypology of nozzles on requestTotal weight 45 kg DESTINATION OF USE Suitable for conveying: honey, glucose, syrups, jams, marmalades, chocolate, creams, condensed milk and dairy products, mayonnaise, margarine, yogurt, butter, cheese, melted, cream, puree, fruit juice, juice, fruit concentrates and fruit pulp, fruit and vegetable fruit salads, diced tomatoes, vegetable preserves, sauces, starches, vegetable purees, whey, preserves, fats, eggs, wine, gelatin, malt, homogenized food, olive oil, vegetable oils.

Inverter with single-phase inputPump body made of 316L stainless steelFood grade plastic materialRotor made of food grade plastic materialTransported volume per revolution 0.1 litersMaximum pressure 15 barMinimum speed 60 rpmMaximum speed 330 rpmVolume conveyed at maximum speed 1800 liters/hourMechanical widia-widia sealsCoupling nozzles diameter 50 mmTypology of nozzles on requestTotal weight 45 kg DESTINATION OF USE Suitable for conveying: honey, glucose, syrups, jams, marmalades, chocolate, creams, condensed milk and dairy products, mayonnaise, margarine, yogurt, butter, cheese, melted, cream, puree, fruit juice, juice, fruit concentrates and fruit pulp, fruit and vegetable fruit salads, diced tomatoes, vegetable preserves, sauces, starches, vegetable purees, whey, preserves, fats, eggs, wine, gelatin, malt, homogenized food, olive oil, vegetable oils.

-

-

Inverter with single-phase inletPump body made of 316L stainless steelFood-grade plastic wipersRotor made of 316 stainless steelCapacity 0.156 liters per revolutionMinimum speed 50 rpmMaximum speed 330 rpmVolume transported at maximum speed 2800 liters /hourMaximum pressure 15 barMaximum pressure 15 barConnecting sleeves diameter 50 mm / 2 "Type on requestMechanical seals in widia - widiaRevertable pumpTotal weight 65 kg DESTINATION OF USE Suitable for transporting: honey, glucose, syrups, jams, marmalades, chocolate, creams, condensed milk and dairy products, mayonnaise, margarine, yogurt, butter, cheese, melted, cream, puree, fruit juice, juice, fruit concentrates and fruit pulp, fruit and vegetable fruit salads, diced tomatoes, vegetable preserves, sauces, starches, vegetable purees, whey, preserves, fats, eggs, wine, gelatin, malt, homogenized food, olive oil, vegetable oils.

Inverter with single-phase inletPump body made of 316L stainless steelFood-grade plastic wipersRotor made of 316 stainless steelCapacity 0.156 liters per revolutionMinimum speed 50 rpmMaximum speed 330 rpmVolume transported at maximum speed 2800 liters /hourMaximum pressure 15 barMaximum pressure 15 barConnecting sleeves diameter 50 mm / 2 "Type on requestMechanical seals in widia - widiaRevertable pumpTotal weight 65 kg DESTINATION OF USE Suitable for transporting: honey, glucose, syrups, jams, marmalades, chocolate, creams, condensed milk and dairy products, mayonnaise, margarine, yogurt, butter, cheese, melted, cream, puree, fruit juice, juice, fruit concentrates and fruit pulp, fruit and vegetable fruit salads, diced tomatoes, vegetable preserves, sauces, starches, vegetable purees, whey, preserves, fats, eggs, wine, gelatin, malt, homogenized food, olive oil, vegetable oils.

-

-

-

-

-

-

-

-

-

-
