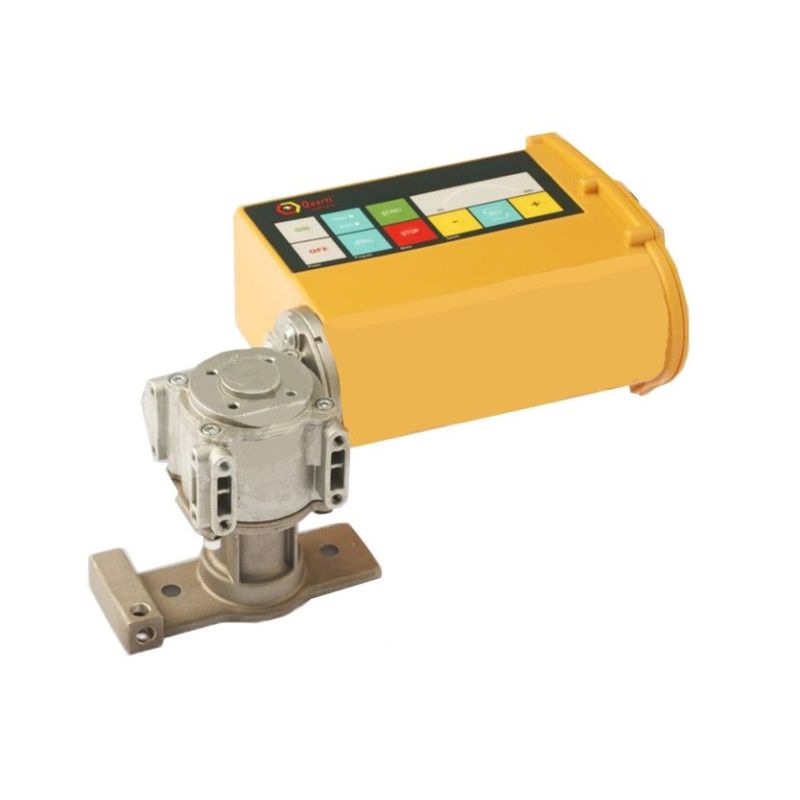

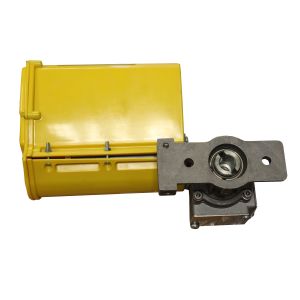

"motorized bar"-electronics for application on Extractors from 9 frames to 27 frames
QI S134
€610.00
Tax included
MOTOR LOCK - 230V-100W applicable on all Extractors with diameter 370/525/620/700 mm Coupling on 16 mm shaft Lid lock not included (Optional reinforced bar for order specify Extractor model and diameter)
Programming from diaphragm control panel In manual with start/stop, speed increase/decrease, direction reversal In automatic with self-learning of previously made settings Illuminated displays of line, start/stop, reversal, programming, memories used, and speed Automatic shutdown after 30 minutes Quick motor mount to Extractor Die-cast aluminum motor mount Volt 230 50/60Hz Watt 150 speed 450 Rpm IP 20 protection rating Weight approx. 3.1 Kg
Stainless steel blade with heat sink Blade length cm 27 Blade width cm 5.3 Indicator light-on-off Automatic internal thermostat Nylon handle with fiberglass 230 V-120 W Warranty 1 year
Optional variable speed motorization : - ELOBA MOTOR (QI S86) or - ELECTRONIC REGISTRATION MOTOR (QI S122) SERIES 2008 IS A NEW SERIES OF PLANTS DESIGNED FOR "SINGLE-BLOCK" HONEY EXTRACTION. In one machine, you have everything you need in a honey extraction room, uncapping ,operculum treatment , accumulation of uncapped combs , honey extraction and decanting of honey. The most obvious advantages are: smaller footprint, convenience in processing steps, with higher yield and reduction of 'inevitable dripping of honey on the floor. The 2008 series is produced in different versions from the hobbyist beekeeper to the professional.
MOTOR LOCK - 230V-100W applicable on all Extractors with diameter 370/525/620/700 mm Coupling on 16 mm shaft Lid lock not included (Optional reinforced bar for order specify Extractor model and diameter)
