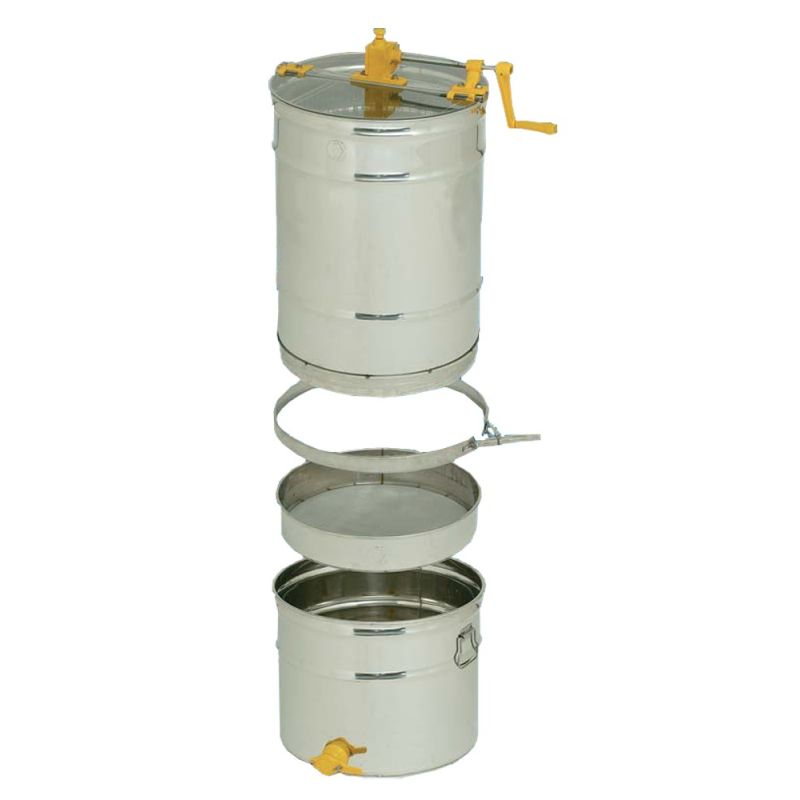

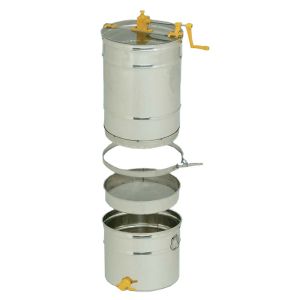

RADIAL Extractor D.B. KIT for 18 Honey super combs or 3 nest combs - INOX basket (QI C09)- full diameter 110 kg maturer stainless steel filter - with stainless handles - 620 mm diameter For nest combs, No. 3 additional cages not included (INOX series QI G06) are needed
Optional variable speed motorization : - ELOBA MOTOR + 510,00€ (QI S86) or - MOTOR REG.ELECTRONIC + 500,00€(QI S134) Extractors "KIT" Free wheel transmission and brake Transparent polycarbonate lids fixed with hinges Transmission holder crossbeam and lids, stainless steel Castle in stainless steel or nylon with fiberglass Thrust bearing for shaft in BRONZE Rounded bottom with semi-total discharge Stainless steel full diameter filter Stainless steel tie( art. QI S51-52-S109-S110-S111-S117-S123) Stainless steel ripener 110 kg with tap art. QI R11-stainless steel handles Stainless steel hardware
Programming from diaphragm control panel In manual with start/stop, speed increase/decrease, direction reversal In automatic with self-learning of previously made settings Illuminated displays of line, start/stop, reversal, programming, memories used, and speed Automatic shutdown after 30 minutes Quick motor mount to Extractor Die-cast aluminum motor mount Volt 230 50/60Hz Watt 150 speed 450 Rpm IP 20 protection rating Weight approx. 3.1 Kg

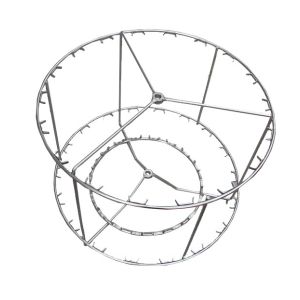

No. 3 additional cages not included are required for nest combs (INOX QI G06 series)
