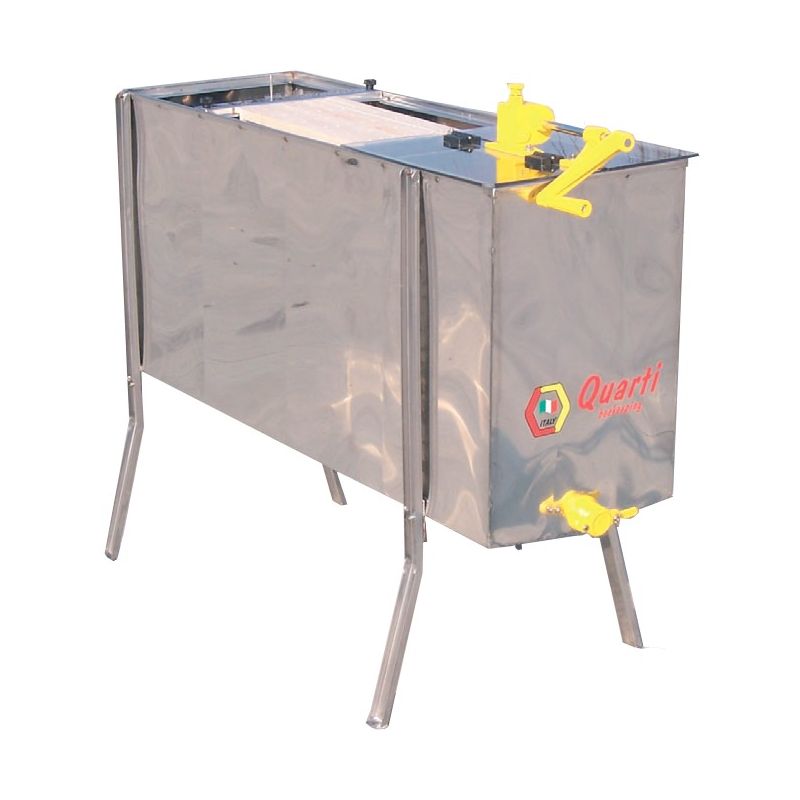

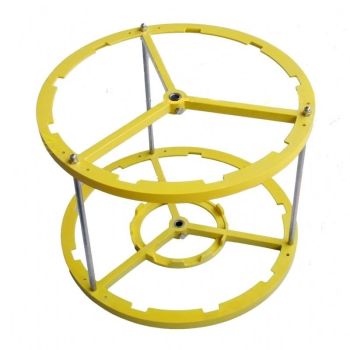

Extractor series 2008 radial D.B. with nylon basket for 9 Honey super frames or 3 brood frames with the 'use of additional cage excluded (INOX series QI G06) with manual transmission -Nylon cutting spout diameter 40 mm Dim.[mm] : Lh: 1250 x W. 750 x Height 800 (+ Removable and height adjustable legs)

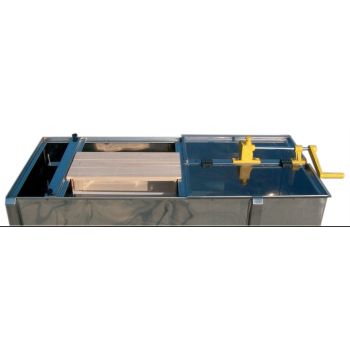

Optional variable speed motorization : - ELOBA MOTOR (QI S86) or - ELECTRONIC REGISTRATION MOTOR (QI S122) SERIES 2008 IS A NEW SERIES OF PLANTS DESIGNED FOR "SINGLE-BLOCK" HONEY EXTRACTION. In one machine, you have everything you need in a honey extraction room, uncapping ,operculum treatment , accumulation of uncapped combs , honey extraction and decanting of honey. The most obvious advantages are: smaller footprint, convenience in processing steps, with higher yield and reduction of 'inevitable dripping of honey on the floor. The 2008 series is produced in different versions from the hobbyist beekeeper to the professional.
Programming from diaphragm control panel In manual with start/stop, speed increase/decrease, direction reversal In automatic with self-learning of previously made settings Illuminated displays of line, start/stop, reversal, programming, memories used, and speed Automatic shutdown after 30 minutes Quick motor mount to Extractor Die-cast aluminum motor mount Volt 230 50/60Hz Watt 150 speed 450 Rpm IP 20 protection rating Weight approx. 3.1 Kg
