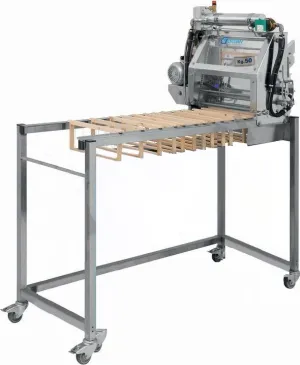

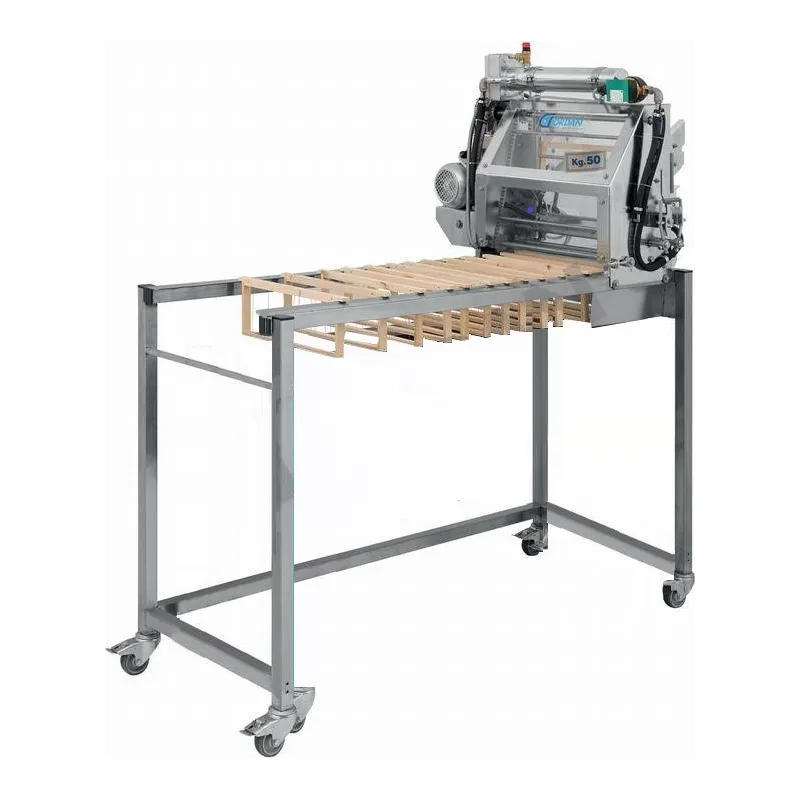

Uncapping machine with heated vibrating knives complete with support frame
GN 170KT
€6,760.00
Tax included
Uncapping Machine (GN 170K) with Support Frame (GN TDB)
Lower table NOT included; please specify dimensions if you already have one.
The uncapping machine (GN 170K) with heated vibrating knives "o" is a professional machine that replaces the manual uncapping process. The machine is constructed entirely of AISI 304 stainless steel and works by guiding the frames through two water-heated vibrating knives, allowing for precise and optimal cutting of the cap.
We RECOMMEND adding the double blade kit; there is no need to re-clean the frames after the uncapping process.
DOUBLE KNIFE FINISHING BLADES KIT (Code GN GASGE000054)
Uncapping capacity: approximately 11 frames/minute.
Knife temperature: thermostatically controlled from 30°C to 90°C.
Power supply: 220 V. Power consumption: 2.8 kW 13.5 A.
Dimensions: 94 x 61.5 x 85 cm.
Support frame (GN TDB)
Support frame (GN TDB) with 4 legs and wheels in AISI 304 steel, complete with stainless steel drain.
Dimensions: 87 x 180 x 98 cm
The support allows for the insertion of a 100, 120, or 150 cm uncapping table with wheels and a wax melter (not included).
**MACHINE MANUFACTURED FOR DADANT BLATT FRAMES. UPON REQUEST, UPON RECEIPT OF DIMENSIONS, IT CAN ALSO BE MADE FOR OTHER FRAMES.

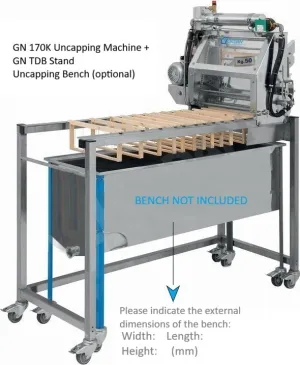

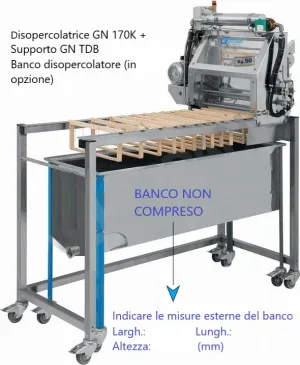

The knives are heated by a hot water heating and recycling unit (included with the machine), and the knife temperature can be adjusted using a dedicated thermostat. The knives also operate inside the wooden frame of the honeycombs and can therefore uncap even half-full frames. Adjusting the blades is quick and easy using a lever on the side of the uncapping machine, which allows you to narrow or widen the gap between the blades. The manually inserted combs are automatically guided and inserted between the blades to ensure even and consistent uncapping on both sides. After the uncapping process, the frames slide into storage on the frame. An uncapping table can be positioned under the frame, as shown in the photo (the length of the frame varies based on the length of the table).
GN 170KT
Uncapping Machine (GN 170K) with Support Frame (GN TDB)
Lower table NOT included; please specify dimensions if you already have one.
The uncapping machine (GN 170K) with heated vibrating knives "o" is a professional machine that replaces the manual uncapping process. The machine is constructed entirely of AISI 304 stainless steel and works by guiding the frames through two water-heated vibrating knives, allowing for precise and optimal cutting of the cap.
We RECOMMEND adding the double blade kit; there is no need to re-clean the frames after the uncapping process.
DOUBLE KNIFE FINISHING BLADES KIT (Code GN GASGE000054)
Uncapping capacity: approximately 11 frames/minute.
Knife temperature: thermostatically controlled from 30°C to 90°C.
Power supply: 220 V. Power consumption: 2.8 kW 13.5 A.
Dimensions: 94 x 61.5 x 85 cm.
